EC Cabinet Centrifugal Fan Supplier in Malaysia
Green Kinetix Sdn Bhd supplies and supports the selection of Nicotra Gebhardt EC cabinet fans for commercial and industrial ventilation projects in Malaysia. Our CP-COPRA and CDP series offer compact, direct-drive centrifugal fan solutions for applications where airflow, static pressure, acoustic performance and controllability matter.
Share your required airflow (m³/h or CMH), external static pressure (Pa), electrical supply, installation arrangement and noise limits. Our team can assist with suitable model selection and project quotations, subject to manufacturer performance data and operating limits.

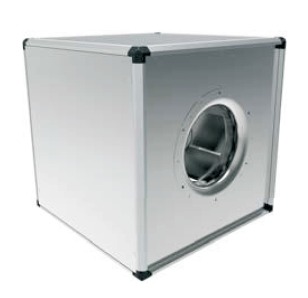

CP-COPRA Series Cabinet Fan
CP-COPRA Double-Skin Cabinet
25mm Panel Glass Wool Insulation
COPRA Internal Fan Module
IE6 Class PM/EC Direct Drive Motor
Product Overview
The CP-COPRA cabinet centrifugal fan is engineered for commercial and industrial supply and exhaust ventilation. Its double-skin panel structure with intermediate glass wool insulation provides acoustic benefits, while direct-drive technology reduces belt-related maintenance.
Airflow Range
Up to 20,000 m³/h
Motor Efficiency
Up to IE6 PM/EC Motor
Control & Speed
0–10 VDC / Modbus RS485
Static Pressure
Up to 2,000 Pa
CDP Series Cabinet Fan
Product Overview
The CDP series cabinet fan utilizes double-inlet, direct-drive forward-curved centrifugal impellers driven by brushless EC motors with Class F insulation and IP44 protection. Housed inside a galvanized sheet cabinet, it provides an efficient and quiet inline ventilation solution for suitable commercial applications.
Airflow Capacity
Up to 5,500 m³/h
Impeller Type
Dynamically Balanced Twin Intake (ISO 1940)
Speed Control
External Potentiometer (0–10 V Signal)
Operating Temperature
-20°C to +40°C Continuous
CDP Galvanized Cabinet
Ducted Mounting Configuration

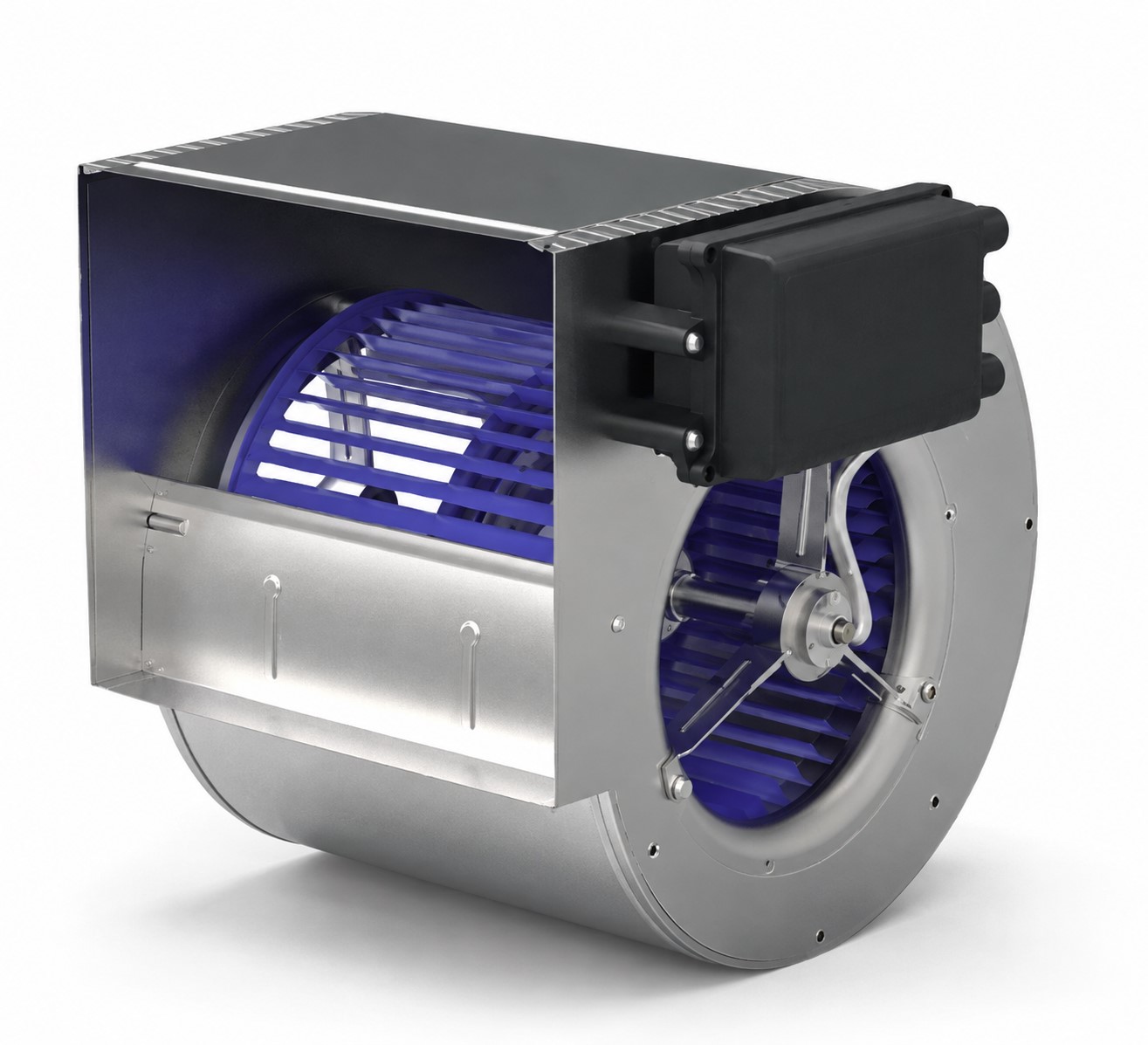

DDMP Internal Fan Module
Double-Inlet Direct-Drive BLDC Fan
CP-COPRA vs CDP Cabinet EC Fans
Compare the two Nicotra Gebhardt cabinet fan series to identify a suitable solution for your ventilation project. Final fan selection must be checked against manufacturer performance curves.
| Feature | CP-COPRA | CDP |
|---|---|---|
| Fan Arrangement | Backward-curved plug fan | Double-inlet forward-curved fan |
| Airflow Capacity | Up to 20,000 m³/h | Up to 5,500 m³/h |
| Motor Technology | PM/EC direct drive | Brushless EC direct drive |
| Speed Control | 0–10 VDC / Modbus RS485 | 0–10 V signal / Modbus RS485 |
| Cabinet Construction | Insulated double-skin cabinet | Galvanized cabinet |
| Typical Application | Higher-airflow cabinet ventilation | Compact inline ducted ventilation |
Model-specific airflow, pressure, sound and electrical ratings must be confirmed during fan selection.
EC Cabinet Fan Applications
Commercial Ventilation
Office buildings, shopping malls, retail spaces, plant rooms and ducted supply or exhaust ventilation systems.
Industrial Ventilation
General industrial supply and exhaust applications, subject to operating temperature, contaminants and material compatibility.
Variable-Speed Ventilation
Applications requiring adjustable airflow using compatible EC motor controls and building management interfaces.
Noise-Sensitive Applications
Commercial projects requiring consideration of cabinet insulation, acoustic performance and installation arrangement.
How to Select a Cabinet EC Fan
For accurate cabinet fan selection and pricing, please provide the following technical information:
- Design airflow in CMH (m³/h) or CFM
- Required external static pressure in Pa
- Power supply, voltage, phase and frequency
- Cabinet dimensions and duct connection requirements
- Control method: 0–10 V or Modbus, where supported
- Operating temperature and acoustic requirements
- Installation location and any special operating conditions
Frequently Asked Questions About EC Cabinet Fans
What is an EC cabinet fan?
An EC cabinet fan combines an electronically commutated motor-driven centrifugal fan with a protective cabinet for ducted supply or exhaust ventilation.
What is the difference between CP-COPRA and CDP?
CP-COPRA uses a backward-curved plug fan arrangement and offers airflow up to 20,000 m³/h. CDP uses a double-inlet forward-curved arrangement and offers airflow up to 5,500 m³/h.
Can EC cabinet fans connect to a BMS?
CP-COPRA supports 0–10 VDC and Modbus RS485 controls as listed for this product range. CDP is listed with a 0–10 V control signal and Modbus RS485. Confirm the specific fan model and interface before integration.
What information is needed for a cabinet fan quotation?
Provide the airflow, static pressure, power supply, installation arrangement, operating conditions, acoustic requirements and control preferences.
